ESP32 T3S3 LoRa Enclosure
Product Description:

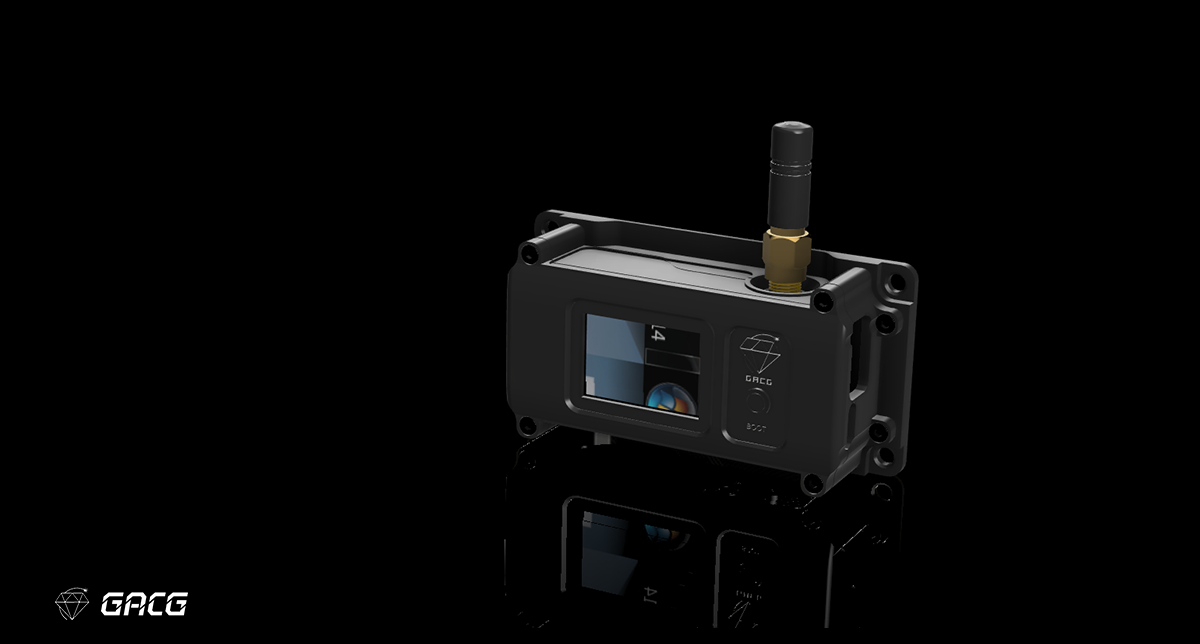

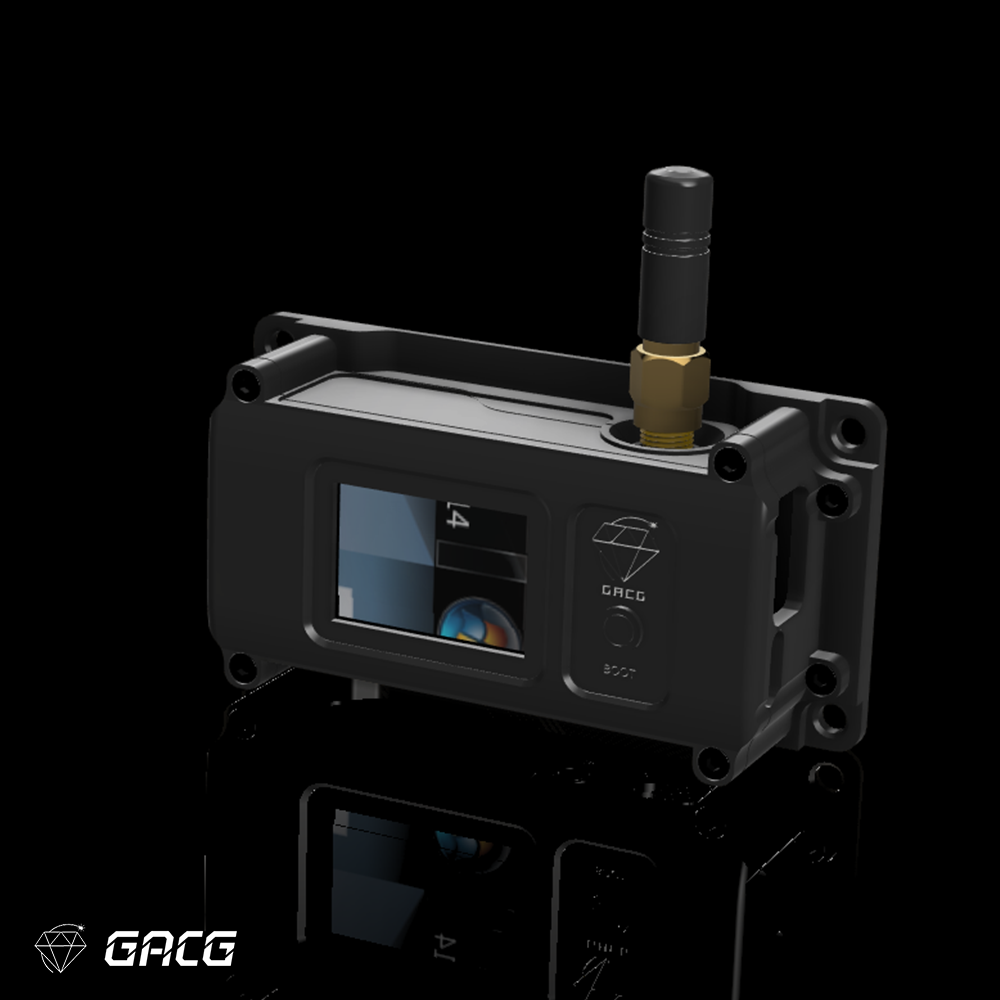

Lightweigh enclosure for the LilyGo ESP32 T3S3 LoRa board
3D printable
Not for outdoor use!
Jump to:
Details:
Small, wall-mountable enclosure for the LilyGo ESP32 T3S3 LoRa board. Fully 3D printable.
Assembling does require some heat inserts, see drawings for more info.

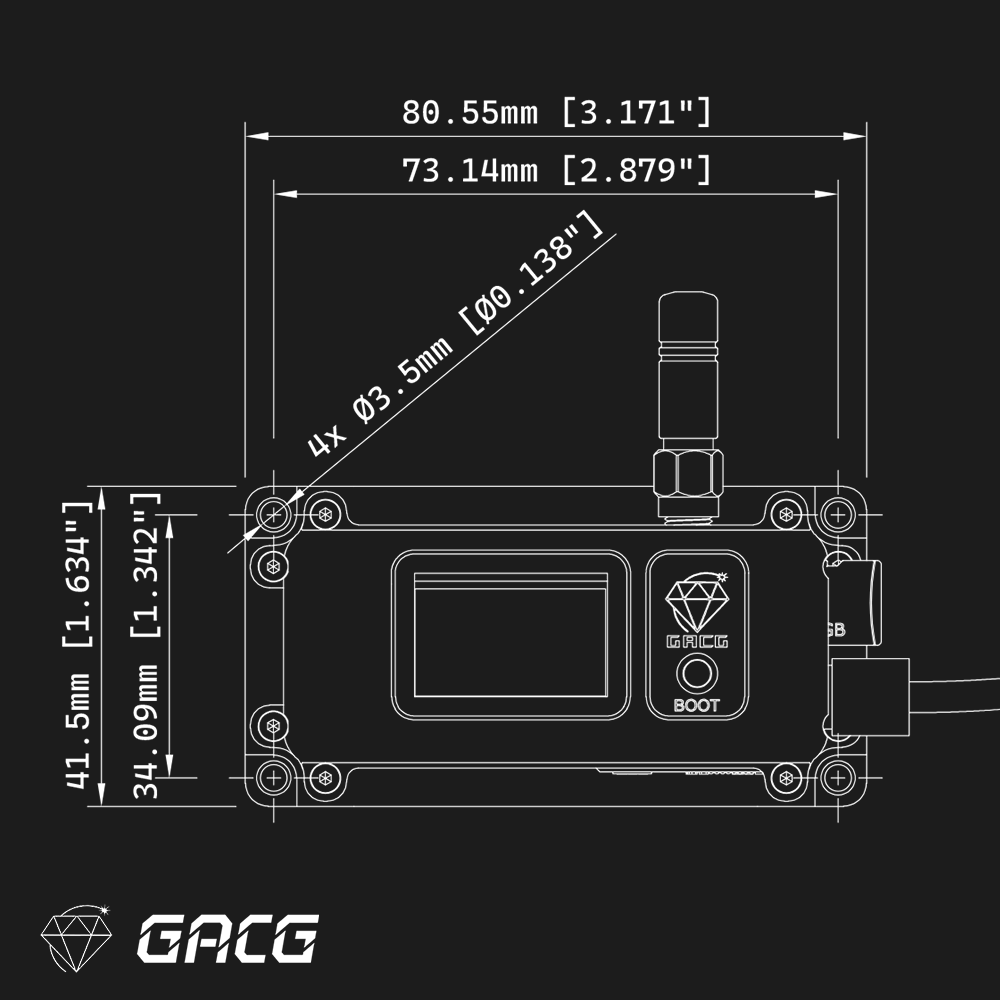

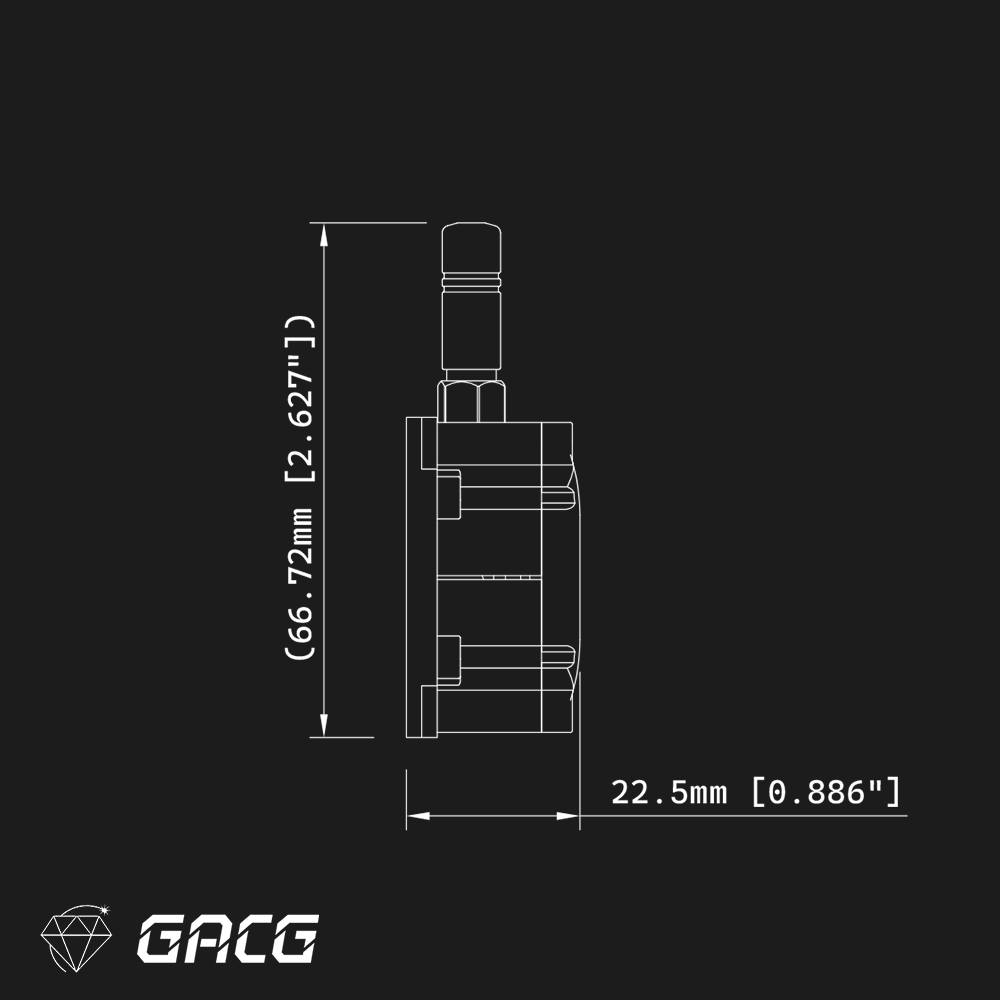

Available Drawings:
Downloads:
(Click image to download)
Sub-Components:
Assembly STEP file
Boot Button
Mount Plate
Cover
Power Slider
Frame
RST Button
Bill of Materials:
Item:
1.
2.
3.
4.
Description:
Filament
LilyGo T3S3 LoRa
Heat insert M2
Hex. Socket Head Screw
Description 2:
Generic PLA
868 MHz
Brass
M2 × 4
Qty.:
32,8 gr
1
10
10
Cost Estimate:
Production: $ ~0.87
Purchase: $ ~28.92
TOTAL: $ ~29.79 [€ ~25,75]
Revisions:
-
Released
